Polyimide (PI) is a high-temperature resistant aromatic polymer compound.

We offer full-range PI & modified PI profiles, support custom sizes and CNC processing.

Guaranteed Safe Checkout

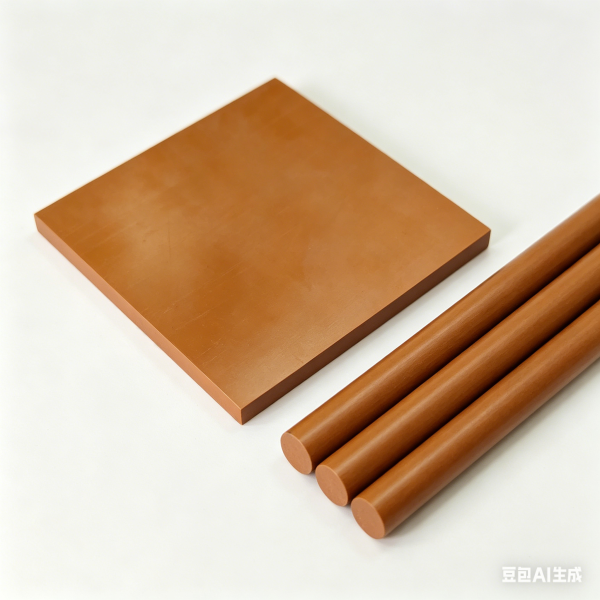

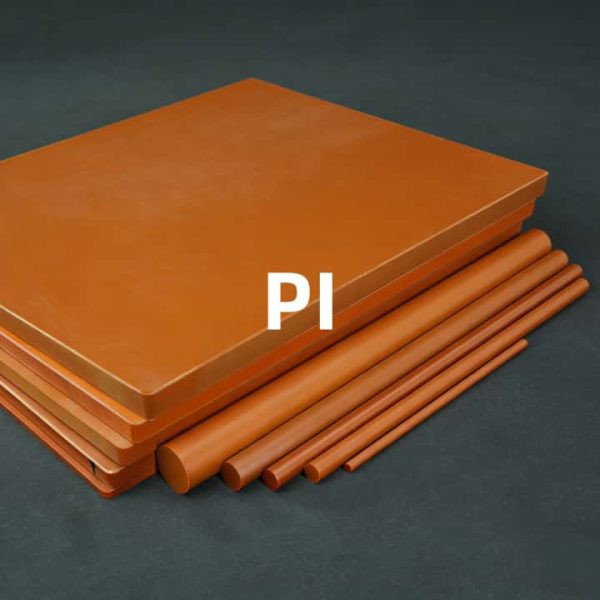

 Size / Dimensions

pi Sheet l*w h Density Color Annealed State
305*305mm 1-60mm
Rod length diameter 1.55g/cm³ Nature/Blcak Annealed
305mm 1-60mm

Modified Grades

Abbreviation Core Filler Key Features Typical Applications
PI No filler / Virgin base resin Ultra high temperature resistance, excellent insulation, outstanding chemical stability, high mechanical strength High temperature gaskets, insulating films, precision base parts, electronic insulation components

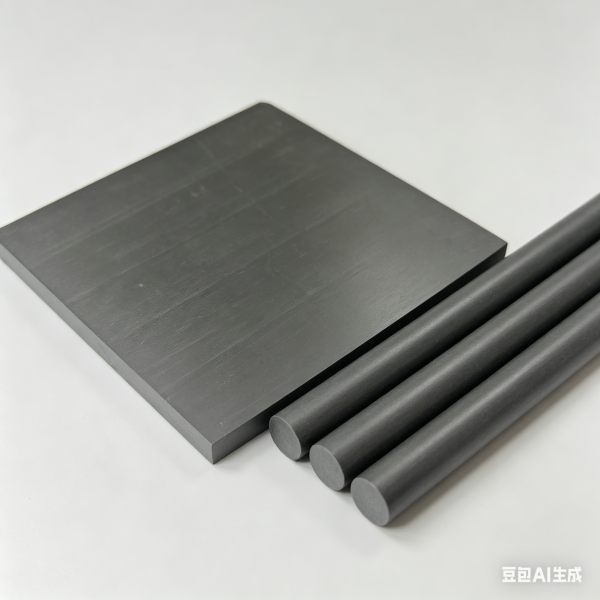

CF/PI Carbon Fiber High strength, high modulus, lightweight, good wear resistance, low thermal expansion Aerospace structural parts, high-precision mechanical parts, automation wear-resistant components
GF/PI Glass Fiber High rigidity, stable dimension, cost-effective, enhanced compression resistance High-temperature fixture jigs, structural support parts, general high-temperature engineering parts
PI-LUB, PI-PTFE-G PTFE + Graphite Super low friction coefficient, self-lubricating, noise-free, excellent wear resistance Oil-free bearings, sliding blocks, high-temperature sealing rings, guide rail accessories
PI-CER, PI-SiC Silicon Carbide / Ceramic filler Super wear resistance, high hardness, corrosion resistance, high temperature stability Precision wear parts, mechanical sealing elements, industrial friction components
PI-SIL, FPC-PI Silica / Silicon-based filler Low thermal expansion, high flexibility, excellent dielectric property, good film-forming property Flexible circuit board substrate (FPC), electronic thin film, chip insulating spacer
PI-MoS2 Molybdenum Disulfide Excellent dry lubrication, stable friction performance, anti-oxidation under high temperature High-temperature dry friction parts, heavy-load shaft sleeves, extreme environment moving parts

Key Features / Advantages

  • Extreme high temperature resistance
  • Excellent mechanical properties at high temperature
  • Outstanding radiation resistance
  • Excellent chemical stability
  • Low moisture absorption
  • Excellent dimensional stability

Custom Service

  • Cut to size
  • Custom by drawings
  • Custom by samples
  • Grinding

Application Industries

  • Medical equipment
  • Semiconductor & electronic parts
  • Automation machinery
  • Food processing machinery
  • Automotive industry
  • Mold & fixture

Packaging & Shipping

  • Standard export packaging
  • Available for sea freight, air freight and express delivery
  • Shipping available worldwide
Trade Terms
  • No MOQ
  • Payment Terms：T/T, Western Union, Trade Assurance
  • Production lead time：7-15 working days
  • Quality inspection before shipment, stable after-sales support

Factory Strength

  • We are a factory specializing in the supply and processing of plastic profiles.
  • We are equipped with FANUC CNC machines, double-sided grinders, 2.5D measuring instruments and CNC engraving machines.
  • Our products are compliant with RoHS standards. We can also provide other relevant certifications upon request.

FAQ

1. General / Product
Q: Are these materials virgin grade?A: Yes, all our plastic sheets and rods are made of 100% virgin raw material with guaranteed quality.
Q: Do you provide material test reports?A: Yes, material datasheet (TDS) and test reports can be provided upon request.
Q: What colors are available?A: Normally natural and black are in stock. Custom colors are available for bulk orders.
2. Size & Customization
Q: Can you cut custom sizes?A: Yes, we provide custom cutting service according to your required length, width and thickness.
Q: Is tolerance controllable?A: Yes, we can meet standard or customized dimensional tolerance as per your requirement.
Q: Can I order small quantities?A: Yes, small MOQ is acceptable for trial orders.
3. CNC Machining
Q: Do you offer CNC machining service?A: Yes, we provide CNC milling, turning, drilling, tapping and grinding services.
Q: What file formats do you accept?A: We accept drawings in STEP, IGS, DWG, DXF and PDF formats.
Q: Can you process according to my sample?A: Yes, we can produce based on your sample or drawing.
4. Lead Time & Delivery
Q: What is your production lead time?A: Standard products are in stock for fast delivery. Custom orders usually take 7 working days.
Q: Can you ship worldwide?A: Yes, we export to Europe, USA, Southeast Asia, Middle East and other countries.
5. Payment & Quality
Q: What payment terms do you accept?A: We accept T/T, L/C, Western Union and other negotiable terms.
Q: How do you control product quality?A: We conduct strict inspection before shipment to ensure high performance and consistency.
6. Application
Q: What industries are these materials used in?A: Mainly used in medical, semiconductor, automation, automotive, electronics, food machinery and precision parts.
