PEEK | Stock Shapes | Stress-Relieved for CNC Machining

Product Specification

Material	Tensile Strength	Flexural Modulus	Elongation at Break	HDT	CUT	UL94
PEEK	90–100 MPa	3.4–3.6 GPa	50–150 %	143–152 ℃	240–260 ℃	V-0

Size / Dimensions

peek	Sheet	L*W	H	Density	Color	Annealed State
		1250*625mm	3-100mm
	Rod	L	D	1.45g/cm³	Nature/Blcak	Annealed
		1000mm	10-200mm
peek+gf20	Sheet	L*W	H	Density	Color	Annealed State
		1250*625mm	5-100mm
	Rod	L	D	1.55g/cm³	Blcak	Annealed
		1000mm	10-200mm
peek+gf30	Sheet	L*W	H	Density	Color	Annealed State
		1250*625mm	5-100mm
	Rod	L	D	1.65g/cm³	Blcak	Annealed
		1000mm	10-200mm
peek+cf30	Sheet	L*W	H	Density	Color	Annealed State
		1220*610mm	5-65mm
	Rod	L	D	1.55g/cm³	Nature/Blcak	Annealed
		1000mm	6-160mm

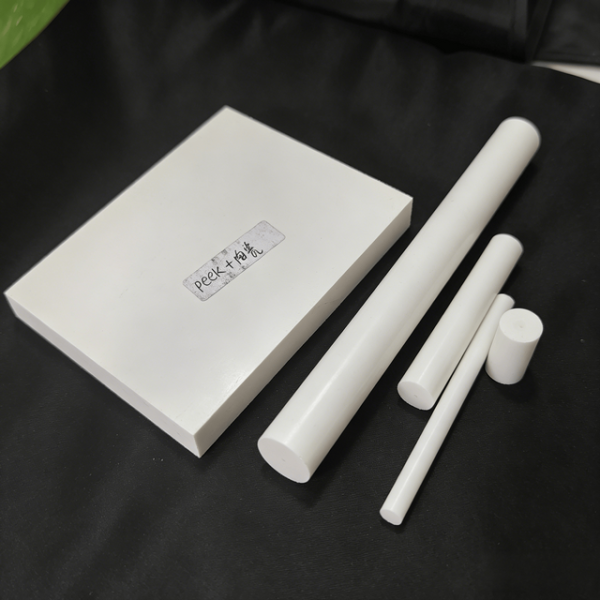

PEEK + Ceramic	Sheet	L*W	H	Density	Color	Annealed State
		310*310	2-100mm	1.6g/cm³	Nature	Annealed
ESD PEEK (106~ 108 Ω/sq)	Sheet	l*w	h	Density	Color	Annealed State
		1250*625mm	5-40mm
	Rod	L	D	1.55g/cm³	Blcak	Annealed
		1000mm	10-200mm
Conductive PEEK (102~ 105 Ω/sq)	Sheet	l*w	h	Density	Color	Annealed State
		1250*625mm	10-40mm
	Rod	L	D	1.55g/cm³	Blcak	Annealed
		1000mm	10-200mm



Key Features / Advantages

• High temperature resistance
• Excellent mechanical strength & rigidity
• Good wear resistance & low friction
• Chemical corrosion resistance
• Low moisture absorption
• High dimensional stability

CNC Machining Service

• CNC Milling
• CNC Turning
• Drilling / Tapping
• Grinding
• Custom drawings accepted

Application Industries

• Medical equipment
• Semiconductor & electronic parts
• Automation machinery
• Food processing machinery
• Automotive industry
• Mold & fixture

FAQ

1. General / Product

Q: Are these materials virgin grade?A: Yes, all our plastic sheets and rods are made of 100% virgin raw material with guaranteed quality.

Q: Do you provide material test reports?A: Yes, material datasheet (TDS) and test reports can be provided upon request.

Q: What colors are available?A: Normally natural and black are in stock. Custom colors are available for bulk orders.

2. Size & Customization

Q: Can you cut custom sizes?A: Yes, we provide custom cutting service according to your required length, width and thickness.

Q: Is tolerance controllable?A: Yes, we can meet standard or customized dimensional tolerance as per your requirement.

Q: Can I order small quantities?A: Yes, small MOQ is acceptable for trial orders.

3. CNC Machining

Q: Do you offer CNC machining service?A: Yes, we provide CNC milling, turning, drilling, tapping and grinding services.

Q: What file formats do you accept?A: We accept drawings in STEP, IGS, DWG, DXF and PDF formats.

Q: Can you process according to my sample?A: Yes, we can produce based on your sample or drawing.

4. Lead Time & Delivery

Q: What is your production lead time?A: Standard products are in stock for fast delivery. Custom orders usually take 7 working days.

Q: Can you ship worldwide?A: Yes, we export to Europe, USA, Southeast Asia, Middle East and other countries.

5. Payment & Quality

Q: What payment terms do you accept?A: We accept T/T, L/C, Western Union and other negotiable terms.

Q: How do you control product quality?A: We conduct strict inspection before shipment to ensure high performance and consistency.

6. Application

Q: What industries are these materials used in?A: Mainly used in medical, semiconductor, automation, automotive, electronics, food machinery and precision parts.
